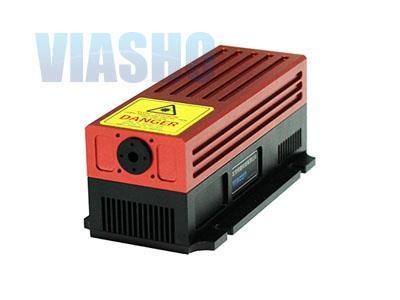

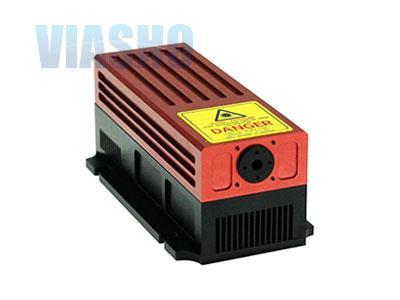

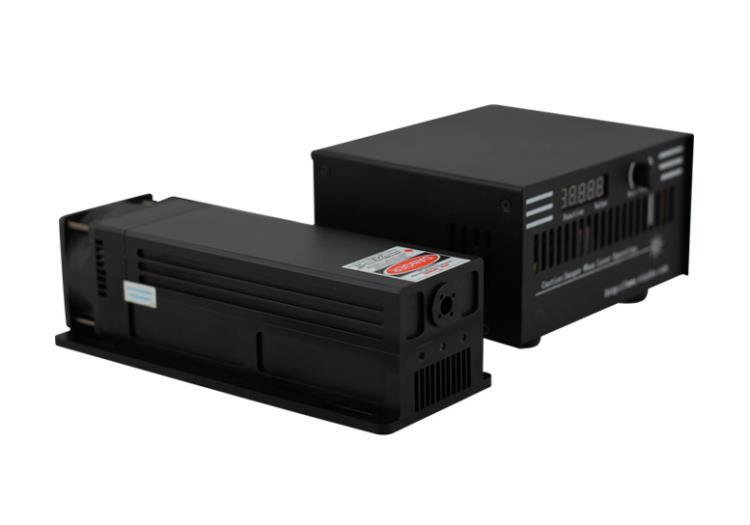

VA-488nm-100mw激光器參數
波長Wavelength (nm) | 488±2 | |
輸出功率Output Power (mW) | 100 | |
光斑模式Beam Mode | NearTE00 | |
線寬Spectral Linewidth (nm) | <0.1 | |
光束質量Beam Quality (M2 factor) | <2 | |
光束發散角Beam Divergence (full angle, mrad) | 1.5 | |
光束直徑Beam Diameter at Aperture (mm) | ~5 | |
功率穩定性Power Stability (RMS, over 8 hours) | <1% | |
出光孔高度Aperture Position (mm) | 50 | |
激光器 | 尺寸Dimensions (L×W×H, mm) | 116 x80 x 63.5 |
Laser Head | 重量Net Weight (kg) | 0.5 |

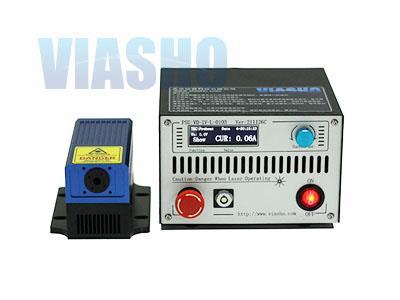

可配電源型號Integrated Driver Model | VD-IISeries / VD-IIISeries | |
電源調制External Modulation | 5V TTL / 5V Analogue | |
調制速率Modulating Frequence | 30KHz TTL / 10KHz Analogue | |
制冷方式Cooling System | TEC | |
預熱時間Warm-up Time (minutes) | <15 | |
工作溫度Operation Temperature (℃) | 18~30 | |
使用壽命Expected Lifetime (hours) | >10000 | |
