ESD抑制器/TVS二極管LC05CI GBLC05CI
LC05CI商品描述：

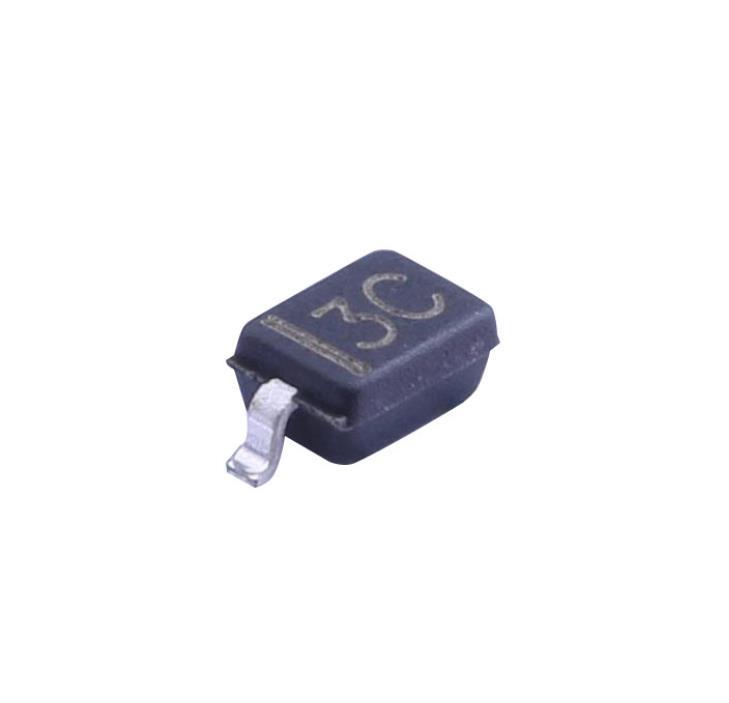

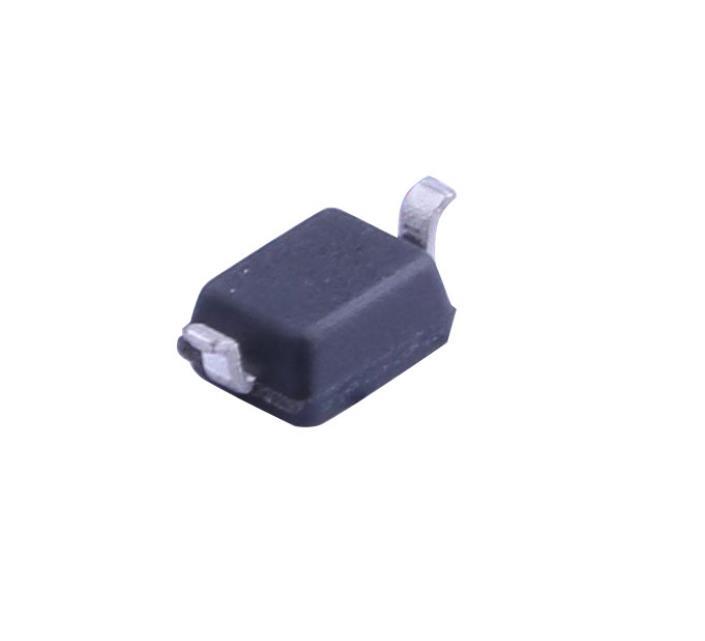

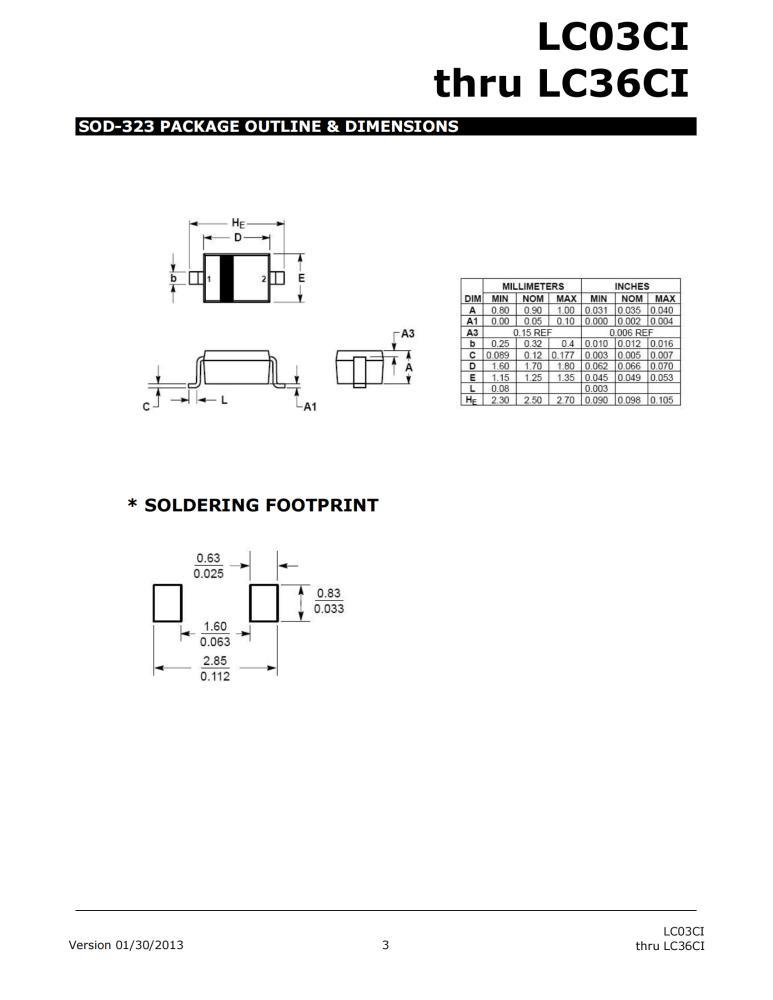

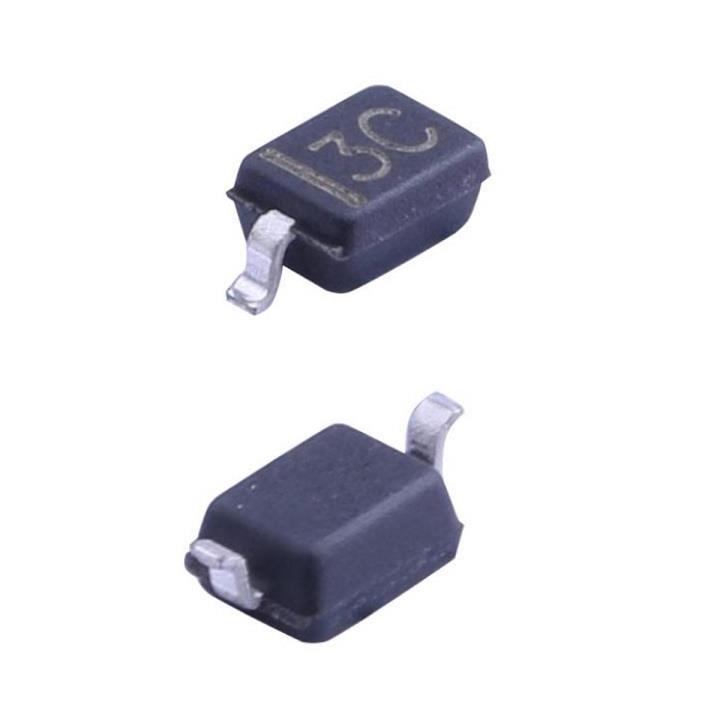

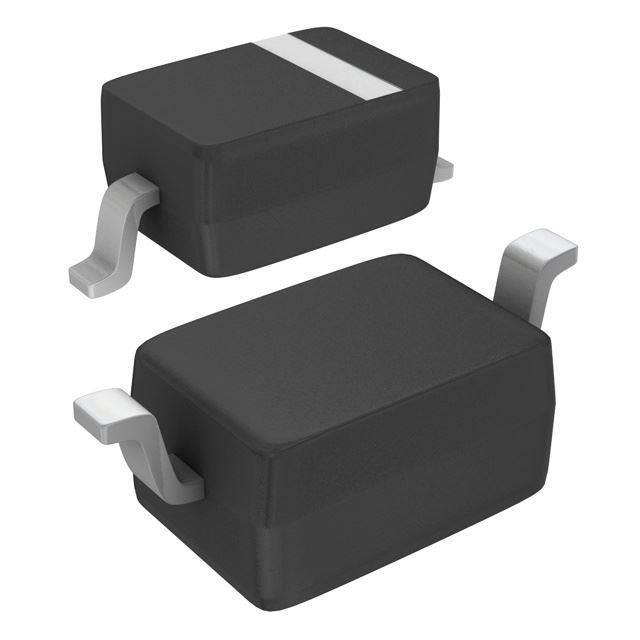

VDRM=5V VBR=6V Ipp=1A (8/20us) Bidirectional VC=9.8V SOD-323
全系列電壓：

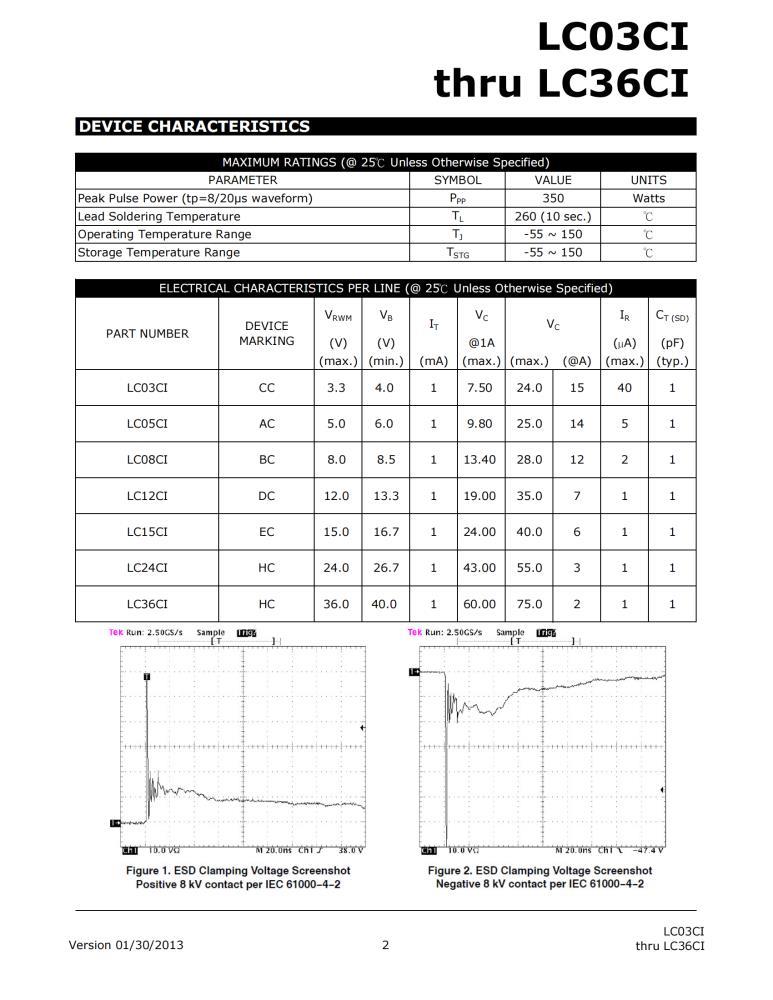

DEVICE MARKING:
LC03CI CC

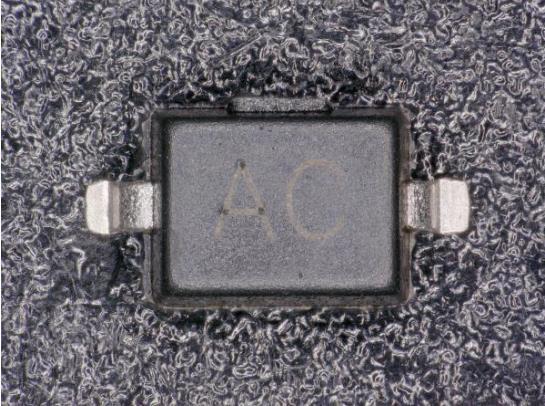

LC05CI AC
LC08CI BC
LC12CI DC
LC15CI EC

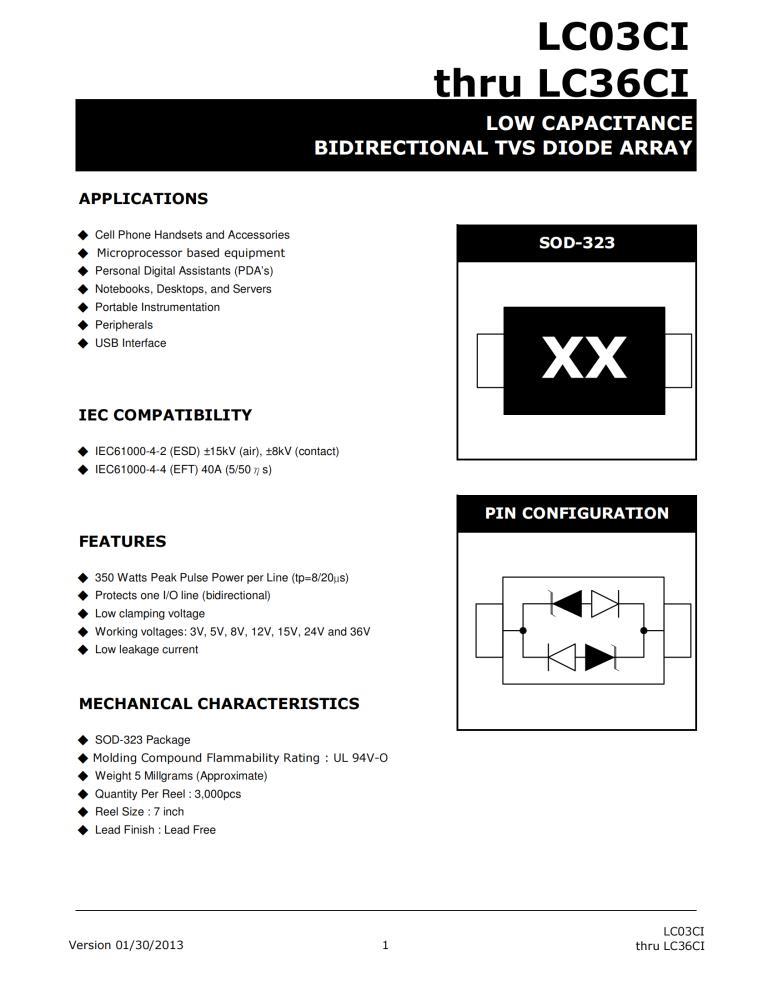

Ultra Low Capacitance TVS Array ESD Protection 低電容瞬態保護器件
產品性能：
? IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
? IEC 61000-4-4 (EFT): 40A - 5/50ns
? IEC 61000-4-5 (Surge): 24A, 8/20μs - Level 2(Line-Gnd) & Level 3(Line-Line)
·250瓦峰值脈沖功率(tp=8/20 s)? 250 Watts Peak Pulse Power per Line (tp=8/20μs)
·替代壓敏電阻MLV(0805)
·單向和雙向配置 Unidirectional & Bidirectional Configurations
·保護一電源或I/O端口Protects One Power or I/O Port
·ESD保護>25千伏ESD Protection > 25 kilovolts
·低箝位電壓Low Clamping Voltage
·適用于3V至24V的多種電壓類型Available in Multiple Voltage Types Ranging From 3V to 24V
·寄生電容較低0.6pF典型Ultra low Capacitance: 0.6pF Typical
RoHS Compliant ? REACH Compliant
應用FEATURES
以太網-10/100/1000
·智能手機·便攜式電子設備
