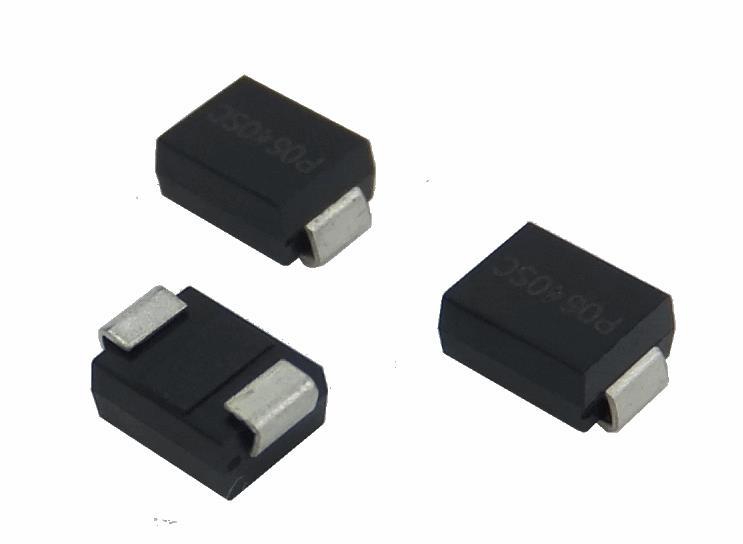

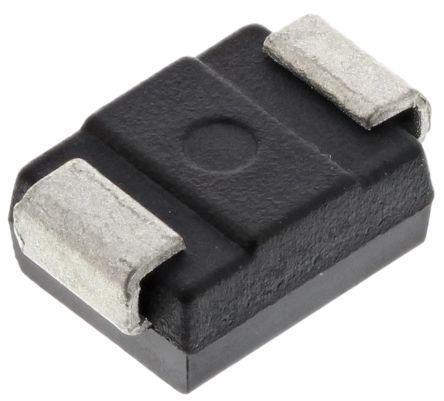

P6SMB6.8A 600W貼片瞬態抑制二極管：
DIODE, TVS, 5W, 5.8V, UNIDIRECTIONAL, DO-214AA-2
P6SMB6.8A是一個600 W的單向瞬態電壓抑制器，封裝在DO-214AA封裝中。它具有優異的箝位能力，較強的功率和快速響應時間。P6SMB系列是專為保護敏感的電子設備免受雷電和其他暫態電壓事件引起的電壓瞬變而設計的。它適用于I/O接口、VCC總線等易損電路的保護。
反向關斷電壓VR為5.8V
擊穿電壓VBR在1mA時最小為6.45V，7.14V。
泄漏電流為1000 A
箝位電壓VC為10.5V
峰值脈沖電流為58.1A
溫度為50°C時無限大散熱器的功耗為5W
峰值正激浪涌電流IFSM為100 A
瞬時正向電壓為5V
工作溫度范圍為-65°C至+175°C，IEC-61000-4-2 ESD 30 KV(空氣)，30 KV(接觸)
iec 61000-4-2數據線的靜電放電保護和iec 61000-4-4標準的eft保護
應用
開關電源，儀表，通訊和網絡設備，消費電子，工業控制，監控設備等
P6SMB6.8A~P6SMB550A（P6SMB6.8CA~P6SMB550CA)全系列600W貼片瞬態抑制二極管：
單向系列型號 | 雙向系列型號 | ||||
P6SMB6.8A | P6SMB47A | P6SMB350A | P6SMB6.8CA | P6SMB47CA | P6SMB350CA |
P6SMB7.5A | P6SMB51A | P6SMB400A | P6SMB7.5CA | P6SMB51CA | P6SMB400CA |
P6SMB8.2A | P6SMB56A | P6SMB440A | P6SMB8.2CA | P6SMB56CA | P6SMB440CA |
P6SMB9.1A | P6SMB62A | P6SMB480A | P6SMB9.1CA | P6SMB62CA | P6SMB480CA |
P6SMB10A | P6SMB68A | P6SMB510A | P6SMB10CA | P6SMB68CA | P6SMB510CA |
P6SMB11A | P6SMB75A | P6SMB530A | P6SMB11CA | P6SMB75CA | P6SMB530CA |
P6SMB12A | P6SMB82A | P6SMB540A | P6SMB12CA | P6SMB82CA | P6SMB540CA |
P6SMB13A | P6SMB91A | P6SMB550A | P6SMB13CA | P6SMB91CA | P6SMB550CA |
P6SMB15A | P6SMB100A | P6SMB15CA | P6SMB100CA | ||
P6SMB16A | P6SMB110A | P6SMB16CA | P6SMB110CA | ||
P6SMB18A | P6SMB120A | P6SMB18CA | P6SMB120CA | ||
P6SMB20A | P6SMB130A | P6SMB20CA | P6SMB130CA | ||
P6SMB22A | P6SMB150A | P6SMB22CA | P6SMB150CA | ||
P6SMB24A | P6SMB160A | P6SMB24CA | P6SMB160CA | ||
P6SMB27A | P6SMB170A | P6SMB27CA | P6SMB170CA | ||
P6SMB30A | P6SMB180A | P6SMB30CA | P6SMB180CA | ||
P6SMB33A | P6SMB200A | P6SMB33CA | P6SMB200CA | ||
P6SMB36A | P6SMB220A | P6SMB36CA | P6SMB220CA | ||
P6SMB39A | P6SMB250A | P6SMB39CA | P6SMB250CA | ||
P6SMB43A | P6SMB300A | P6SMB43CA | P6SMB300CA | ||
