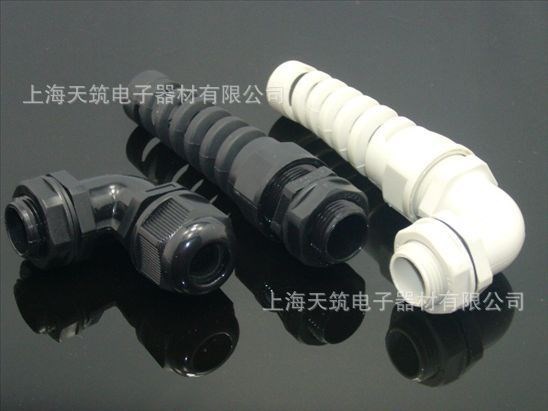

本公司提供全系列尼龍電纜防水接頭,貨源充足,5點前均可當天發貨! 有需要的請您現在就聯系吧!
·螺牙規格:
·產品材質:
·保護等級:
·工作溫度:
·產品特性:
·顏色種類: | 公制牙(Metric), PG牙、G(PFBSP/PS)牙、NPT牙。
A.C.F部分采用UL認可之尼龍PA66〔防火等級UL94V-2)制成;(可定制UL認可的V-0防火等級尼龍原料);
B.D部分采用三元乙丙耐侯橡膠制成。(可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)。
IP68-10
靜態-40℃至100℃,或瞬間可耐熱至120℃;動態-20℃至50℃,或瞬間可耐熱至100℃。
特殊夾聚爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱
酸、酒精、油、油脂及一般溶劑。
黑色、灰色。其它顏色可定做。 |
螺牙規格
Thread | 編號
Item.No. | 電纜范圍
CableRange
Ф(mm) | 螺紋外徑
Thread O.D.
C1(mm) | 螺紋長度
Thread Length
C2(mm) | 扳手徑
Spanner Size
A&F(mm) | 包裝
Std.Pkg
(pcs) | M12 x 1.5 | SCG-M12S -6 | 2-6 | 12 | 8.5 | 18/15 | 50 | SCG-M12SL-6 | 2-6 | 12 | 15 | 18/15 | 50 | SCG-M12 -5 | 2-5 | 12 | 8.5 | 18/19 | 50 | SCG-M12 -7 | 3-7 | 12 | 8.5 | 18/19 | 50 | SCG-M12L -5 | 2-5 | 12 | 15 | 18/19 | 50 | SCG-M12L -7 | 3-7 | 12 | 15 | 18/19 | 50 | M16 x 1.5 | SCG-M16S -8 | 3-8 | 16 | 10 | 22/19 | 50 | SCG-M16SL-8 | 3-8 | 16 | 15 | 22/19 | 50 | SCG-M16 -7 | 3-7 | 16 | 10 | 22/22 | 50 | SCG-M16 -10 | 4-10 | 16 | 10 | 22/22 | 50 | SCG-M16L -7 | 3-7 | 16 | 15 | 22/22 | 50 | SCG-M16L -10 | 4-10 | 16 | 15 | 22/22 | 50 | M20 x 1.5 | SCG-M20S -12.5 | 4-12.5 | 20 | 10 | 27/24 | 20 | SCG-M20 -11 | 3-11 | 20 | 11 | 27/27 | 20 | SCG-M20 -13.5 | 5-13.5 | 20 | 11 | 27/27 | 20 | SCG-M20L -11 | 3-11 | 20 | 15 | 27/27 | 20 | SCG-M20L -13.5 | 5-13.5 | 20 | 15 | 27/27 | 20 | M25 x 1.5 | SCG-M25 -16 | 8-16 | 25 | 11.6 | 33/33 | 20 | SCG-M25 -18 | 10-18 | 25 | 11.6 | 33/33 | 20 | SCG-M25L -16 | 8-16 | 25 | 15 | 33/33 | 20 | SCG-M25L -18 | 10-18 | 25 | 15 | 33/33 | 20 | | | PG7 | SCG-PG7S -6 | 2-6 | 12.5 | 8 | 17/15 | 50 | SCG-PG7 -5 | 2-5 | 12.5 | 8 | 17/19 | 50 | SCG-PG7 -7 | 3-7 | 12.5 | 8 | 17/19 | 50 | PG9 | SCG-PG9 -5.5 | 2-5.5 | 15.2 | 8.2 | 22/19 | 50 | SCG-PG9 -7.5 | 3-7.5 | 15.2 | 8.2 | 22/19 | 50 | PG11 | SCG-PG11-7 | 3-7 | 18.6 | 10 | 24/22 | 50 | SCG-PG11-10 | 4-10 | 18.6 | 10 | 24/22 | 50 | PG13.5 | SCG-PG13.5-9 | 3-9 | 20.4 | 10 | 27/24 | 20 | SCG-PG13.5-12.5 | 5-12.5 | 20.4 | 10 | 27/24 | 20 | PG16 | SCG-PG16-11 | 5-11 | 22.5 | 10.8 | 30/27 | 20 | SCG-PG16-14 | 6-14 | 22.5 | 10.8 | 30/27 | 20 | PG21 | SCG-PG21-15.5 | 8-15.5 | 28.3 | 12 | 36/33 | 20 | SCG-PG21-17.5 | 10-17.5 | 28.3 | 12 | 36/33 | 20 | G3/8 | SCG-G3/8-7 | 3-7 | 16.7 | 10 | 22/22 | 50 | SCG-G3/8-10 | 4-10 | 16.7 | 10 | 22/22 | 50 | G1/2 | SCG-G1/2-9 | 3-9 | 20.5 | 10 | 27/24 | 20 | SCG-G1/2-12.5 | 5-12.5 | 20.5 | 10 | 27/24 | 20 | G3/4 | SCG-G3/4-16 | 8-16 | 26.4 | 12 | 33/27 | 20 | SCG-G3/4-18 | 10-18 | 26.4 | 12 | 33/27 | 20 | | | NPT3/8 | SCG-NPT3/8-7 | 3-7 | 17 | 10 | 22 | 50 | SCG-NPT3/8-10 | 4-10 | 17 | 10 | 22 | 50 | NPT1/2 | SCG-NPT1/2-9 | 5-9 | 24 | 10 | 24 | 20 | SCG-NPT1/2-13 | 7-13 | 24 | 10 | 24 | 20 | NPT3/4 | SCG-NPT3/4-16 | 8-16 | 26.5 | 15 | 33 | 20 | SCG-NPT3/4-18 | 10-18 | 26.5 | 15 | 33 | 20 |
|
